STAX - SRM-D10

STAX - SRM-D10

Designed in
Japan

1 Year of
Warranty

Ideal for
Audiophiles

Best Suited for
Portable Use

Metal
Build

DESCRIPTION

THE ULTIMATE ELECTROSTATIC DAC/AMP, CONNECT EASILY

Experience Hi-Res audio with the SRM-D10. The specially tuned DAC supports up to DSD128 (5.6MHz) and PC 384 kHz playback with an XMOS USB interface. The superior built-in amplifier is resistant to high voltage and offers a great performance. With its 3.5mm analogue input and MicroUSB digital input, the SRM-D10 makes connecting to your PC, Mac, DAP or just about any other audio player easy. The 5-pin PRO bias STAX Earspeaker output lets you connect to your favourite STAX Earspeaker and enjoy world-class audio in no time.

Headphone-Zone-STAX-SRM-D10
Headphone-Zone-STAX-SRM-D10
Headphone-Zone-STAX-SRM-D10
Headphone-Zone-STAX-SRM-D10
Headphone-Zone-STAX-SRM-D10

CARRY IT ANYWHERE, DURABILITY WITH STYLE & LISTEN FOR LONG

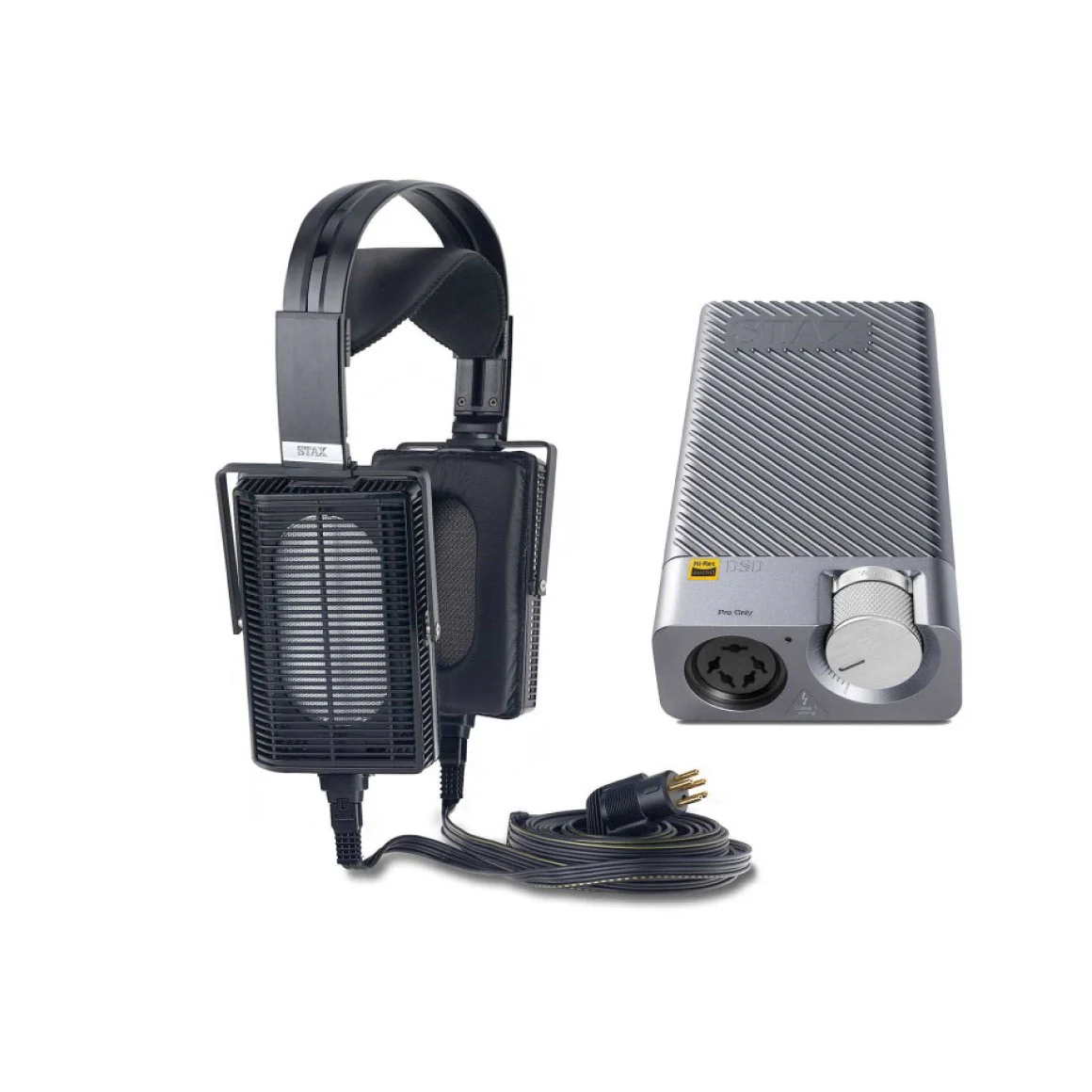

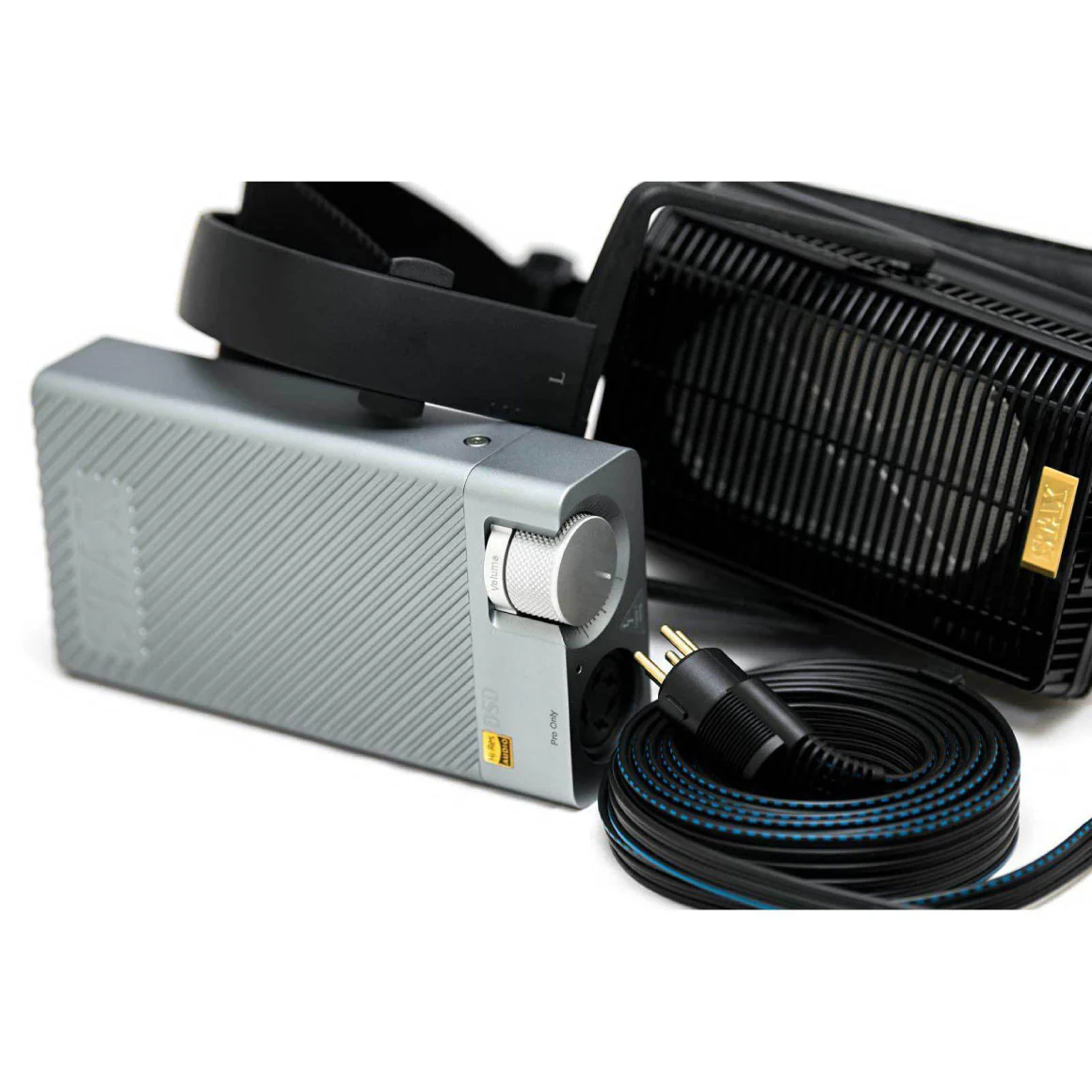

Now you do not need to be tied down to one spot just to listen to pure audio. The SRM-D10 is the very first electrostatic driver in the history of STAX that can be carried around. This high-quality amplifier can drive your favourite STAX Earspeakers when on-the-go. For additional durability and style, the SRM-D10 features an aluminium chassis. This case has been treated with multiple processes for a better shielding and velvety texture. Say goodbye to heaps of wires and wall outlets with the SRM-D10. The built-in rechargeable battery gives you 4.5 hours of battery life when using the analogue input and 3.5 hours of battery life when using the digital input.

Headphone-Zone-STAX-SRM-D10
Headphone-Zone-STAX-SRM-727II
Headphone-Zone-STAX-SRM-D10
Headphone-Zone-STAX-SRM-D10
Headphone-Zone-STAX-SRM-D10

SPECS

AUDIO SPECIFICATIONS
FREQUENCY RESPONSE 20Hz – 40KHz (+0dB,-3dB)
GAIN 53dB (450 times)
HIGH HARMONIC DISTORTION 0.025% / 1KHz-10KHz
INPUT IMPEDANCE 10 KΩ(analog input)
MAX. OUTPUT VOLATGE 200Vr.m.s / 100Hz-10KHz
STANDARD BIAS VOLTAGE DC 580V
SUPPLY VOLTAGE DC 14V
VOLTAGE 100-240V/50-60HZ
CONTROLS & CONNECTIVITY
BATTERY OPERATING TIME 4.5hour(analog input) / 3.5hour(digital input)
RATED INPUT LEVEL 230mV (100V output)
MAX. INPUT LEVEL 10V (minimum volume in analog input)
RECOMMENDED OPERATING TEMPERATURE 0-35°C, <90% RH (No condensation)

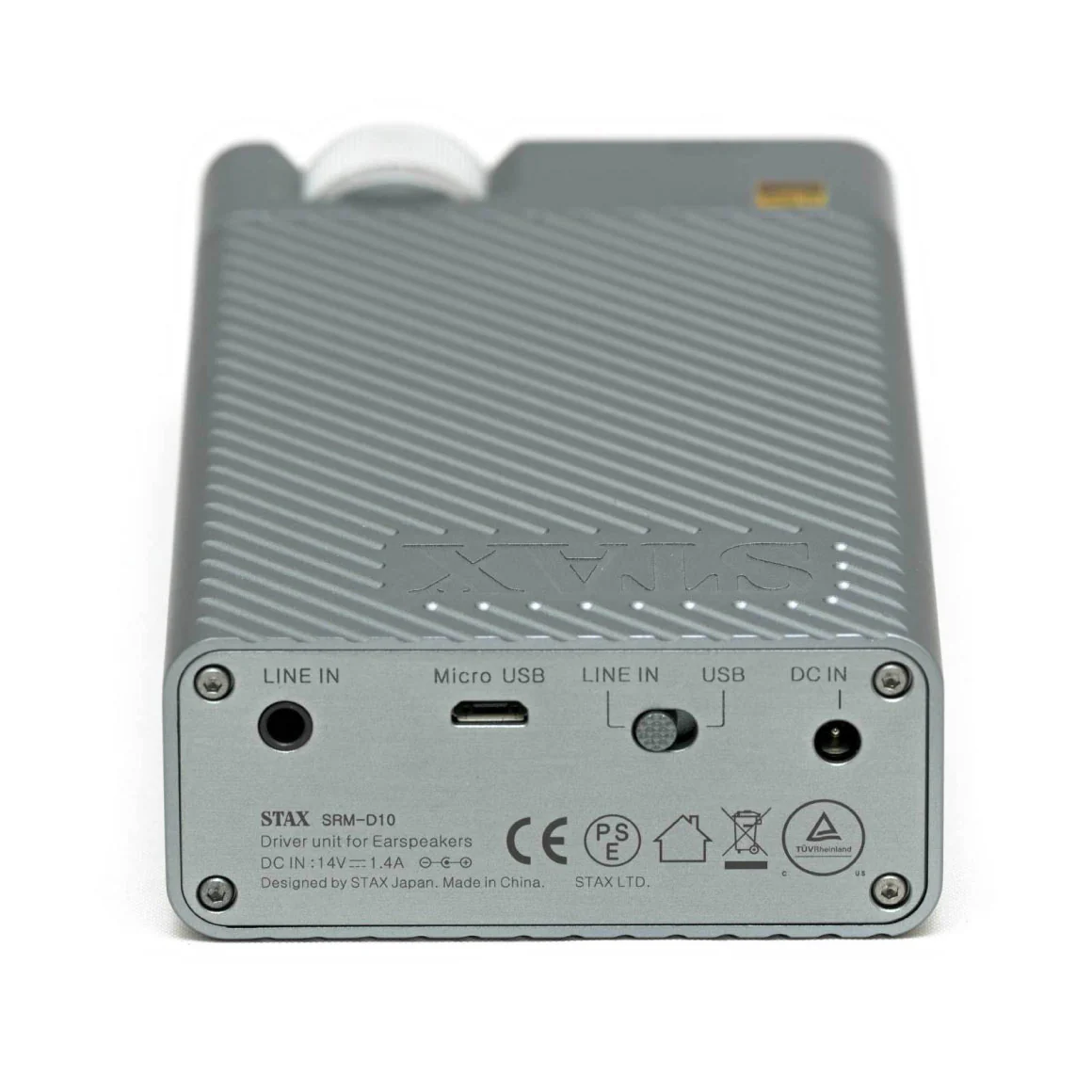

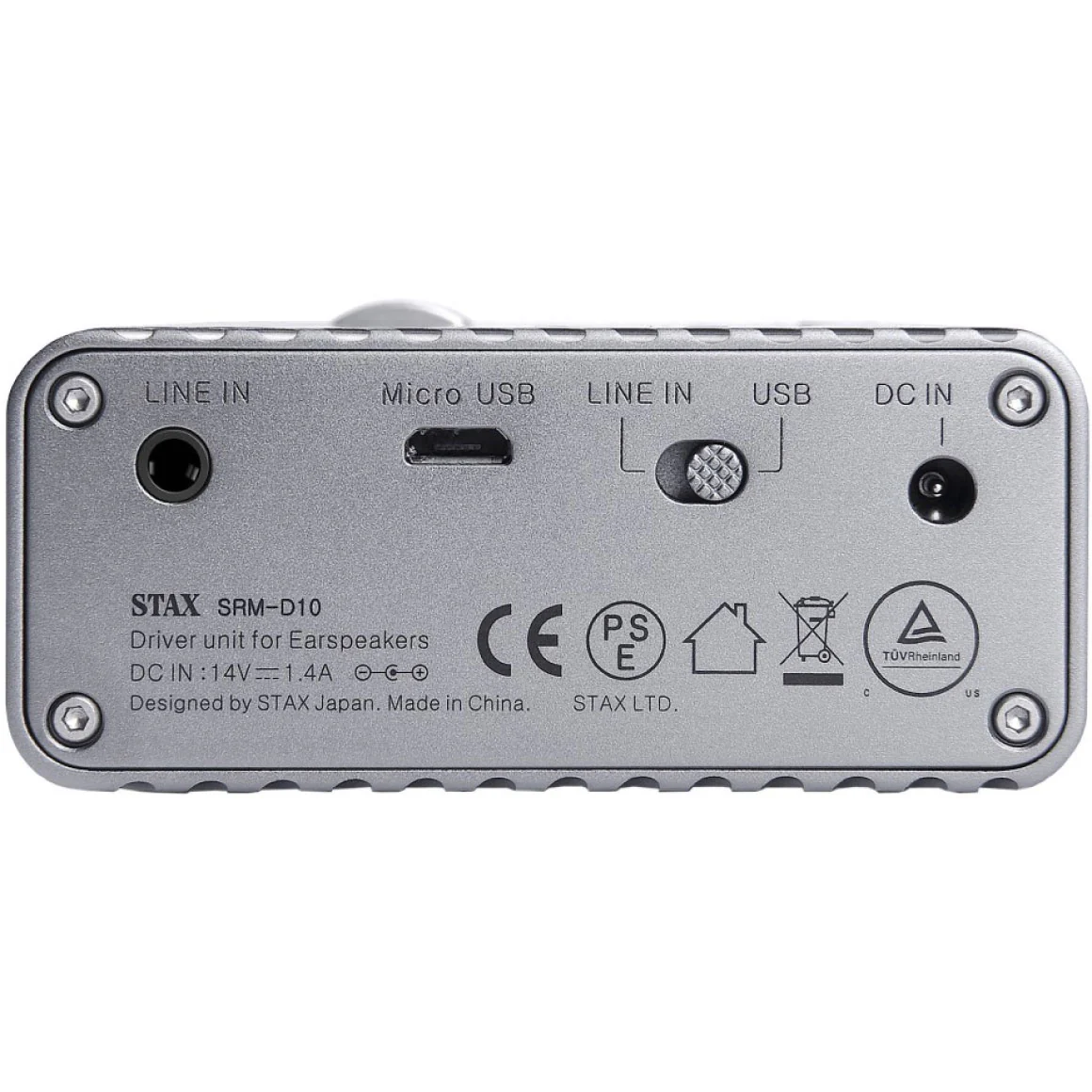

SIGNAL INPUT MicroUSB digital input, 3.5mm analog input
POWER CONSUMPTION 6.4W (USB input)、5W (analog input)
DESIGN & BUILD
DIMENSIONS 75W×32H×141Dmm
WEIGHT 450g
IN THE BOX
BOX CONTENTS 1. STAX SRM-D10

WARRANTY AND MEDIA REVIEWS

1 Year Warranty

Don't sweat it, this STAX SRM-D10 comes with a 1 year warranty from STAX that covers manufacturing defects. All products featured on Headphone Zone are backed by an original manufacturer's warranty.

Read more about STAX's warranty in India.
